- FOR GRID TIES LOOK HERE
- MICRO GRID TIED INVERTER ONLY $395.95
- (Inst)
- ECONOMICAL 280/300 Watt GRID TIE
- Finally a quality micro
- grid tie at a low price!
- SPIN YOUR POWER METER BACKWARDS AND
- SAVE MONEY ON YOUR MONTHLY POWER BILL
- GRID FEED With WIND POWER
- And SOLAR POWER or BOTH!!!
- RUN YOUR POWER METER BACKWARDS!
- Build a Mini Wind Farm and Grid Tie
- to turn you power meter backwards.
- (Inst)

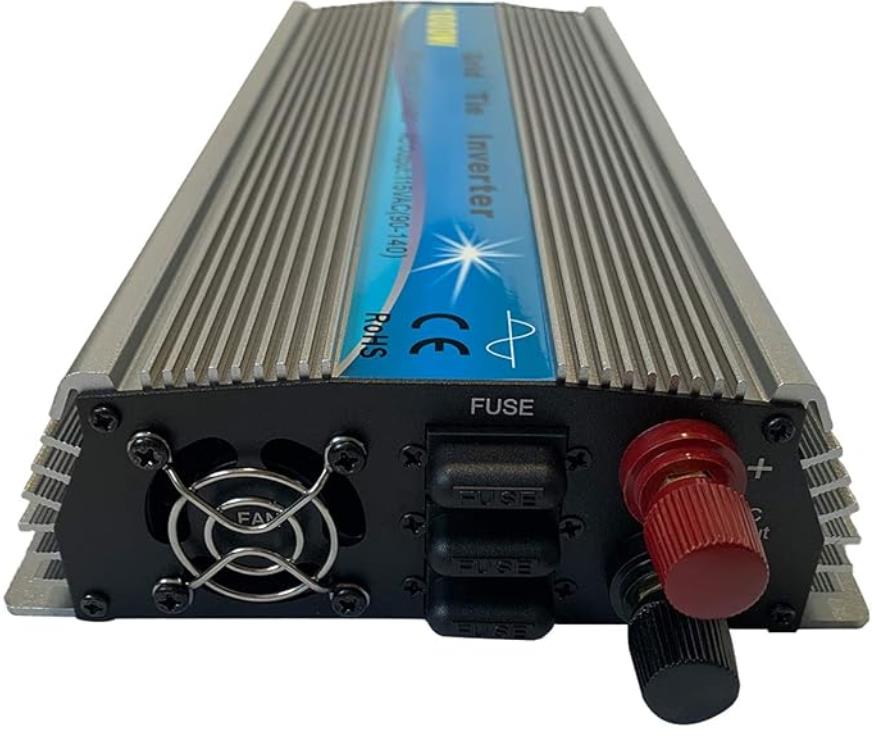

- THIS GRID TIED INVERTER CAN BE USED FOR -
- Grid ties directly to 24 volt rated Solar Panels with no battery bank needed
- If used for wind turbines use only with a battery to buffer the DC power (see more below)
-
- #GT280/ Grid Tied Inverter $395.95 plus $21.65 S&H -
- Features:
- * Grid tied inverter supplies power for AC power needs
* Constant power output
* LED's display flashing cycle output power voltage or fault
* Island protected: Inverter will shut down if city mains trip
* Thermal Protection With Both Fan and Convection Cooled- * Normal DC input voltage: 14V-28V Max. (1/100% power spread)
* Normal average output power: 300W @ 28 volts DC
* Maximum peak load output power: 330W @ 30 volts DC
* Output wave form: Pure sine wave < 3.5% THD
* Maximum efficiency: 93%
* Power Factor 0.99
* 30 Watt Minimum to start up
* MTTP Minimum 10%- * AC in/out 100-260V adjustable.
* AC Auto-Detection: 50Hz/60Hz ±5Hz- * AC connection (single phase): Power cord included
- * UNITS ARE STACKABLE = Unlimited (in parallel)
- * Size 2" X 5.5" X 8"
- * Weight 3.6 lbs.
- INSTRUCTIONS
HIGH VOLTAGE SPIKES IN WIND STORMS CAN FRY GRID TIES!
(How The "NO BATTERY" Dream is Really a "NIGHTMARE")

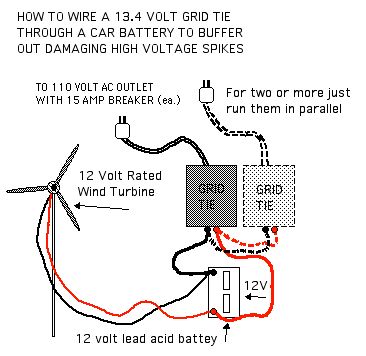

GREAT GRID TIEING TRICK for wind turbines when using common
grid ties rated with a 14 to 28 volt input range (also called 10-30 volt input grid tie)
Tied
of burning out your grid ties??? Here is a great tip!
USE YOUR GRID TIE INVERTER AS YOUR DUMP LOAD (see below)
How The "NO BATTERY" Dream is Really a "NIGHTMARE"
Many of you hate the idea of using batteries, yes I know the "NO BATTERY NEEDED" dream very well but the battery will save your mind, spirit and wallet so the faster you forget about the "NO BATTERY NEEDED" idea the sooner you can be happy and avoid the pit falls of an Inverter putting on fireworks displays. The good news is that they can be old $10.00 batteries from the junk yard since you are just going to use them as voltage regulators. Even 10 year old batteries will work even if they can only hold a charge for a few days so they do not need to be strong or new but they do need to work just a little. Now wire the two 12 volt batteries in series and you have a cheap 24 volt capacitor (battery) that will keep your grid tie from burning up. Maybe the best part of using a Grid Tie as your dump load is that your being 100% energy efficient 100% of the time! Burning power away by heating up big resistors is VERY wasteful!
-

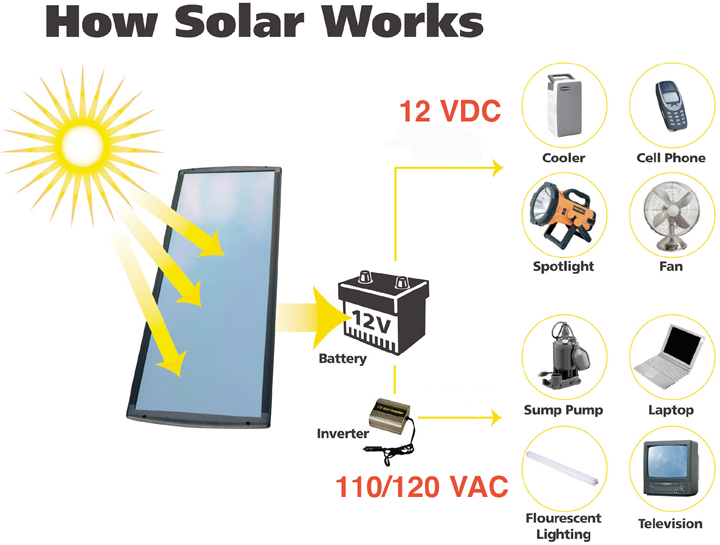

HOW SOLAR WORKS
