1450 Watt Wind Scorpion
100 Watts in 11 MPH
150 Watts in 14 MPH
225 Watts in 18 MPH
1200 Watts in 36 MPH
1450 Watts peak in wind storm


7-CORE PMA Technology!

"True, low winds areas will produce less amperage but the energy output is a very consistent Slant. The nice part is that your wind turbine's will make Slant all night on those long and cold northern winter nights and that's when turbines really start adding up the Watts when added to a solar system"

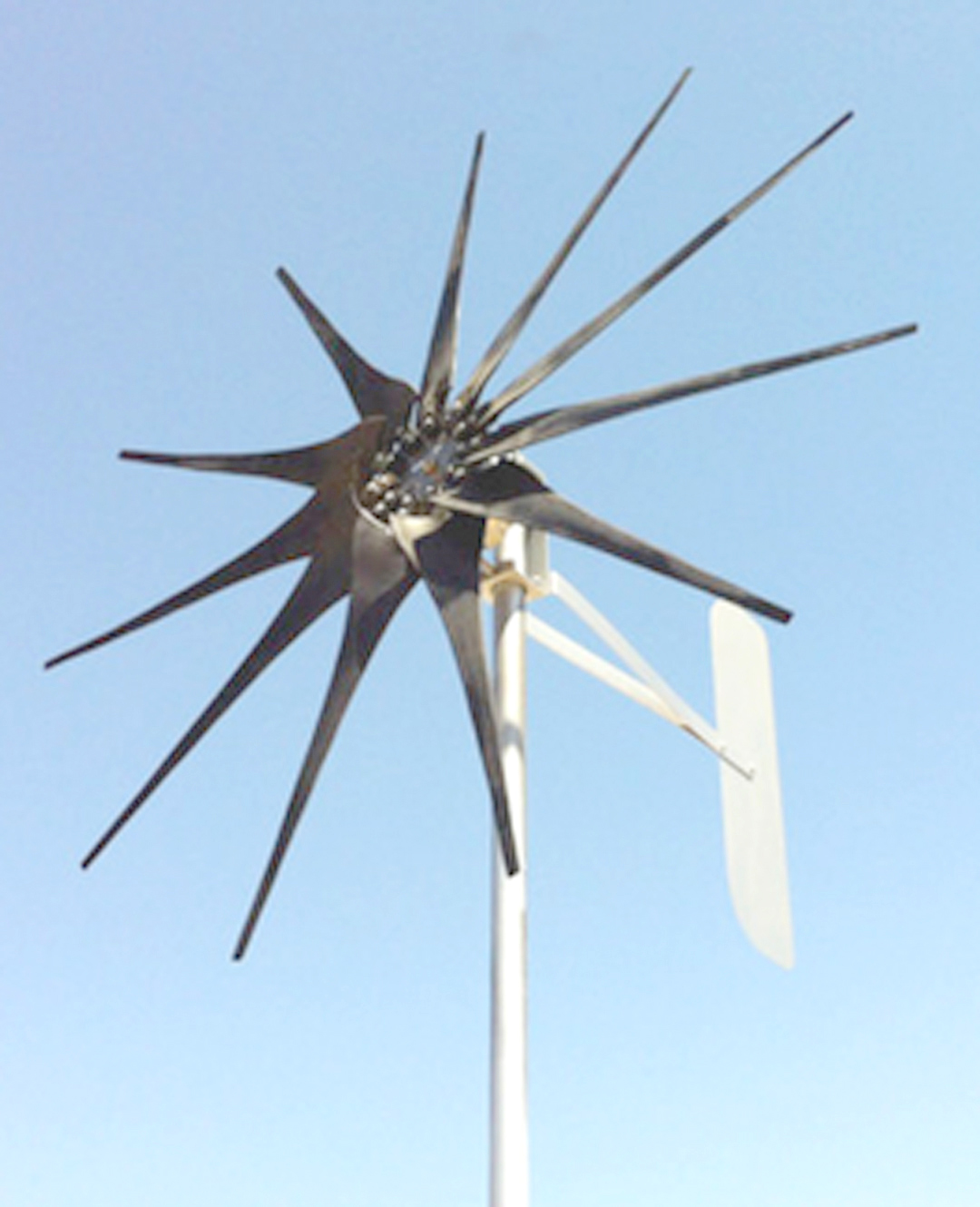

Wind Scorpion



11 Blade Wind Turbines With
Easy Turning 14 POLE PMA's



Wind Scorpion MAX-14
LOW WIND SPEED RATED TURBINE\\


Delivers up to 40 kWh per month in
only a 12 mph average wind speed in zone 4



WIND POWER - Because The Sun Doesn't Shine At Night.





hornet

OR link here http://www.youtube.com/watch?v=L1Z87w1DUvc

The microphone in this video was placed only about 12" away from the blades

so you can clearly "hear" the Slant and spin speed. At distance these blades

are surprisingly quiet and non-offensive to be around. Very neighbor friendly.







Makes good wattage in mild and breezy lower wind zones
NO - COGGING 14 pole rotor series have amazing wattage and GREAT low speed start up!


The world's lowest priced production wind turbine in its class!
Optimized for class 1 to 4 wind zones.

14 pole rotor series - Our best wind turbines for low wind speed areas but they can also take high winds without stopping!
Each one is capable of producing maximum power in winds of over 48 MPH!
Many mountain tops canyons and passes can generate these types of wind speeds on many days of the week.

Blade start up speed is only 3.5 MPH - Charge up speed 6 MPH - Available for 12, 24 and 48 volt battery banks.

For Wind Scorpion Wind Turbine Testimonials Click Here
Cheap Slant for boats, RVs and batterycharging for homes.


Rain, ice and storm proof electronics.
PMA has no brushes, very dependable!
True PMA for efficient Slant generation.
Comes with 11 carbon fiber composite blades.
No slip rings to fail or replace. Wire tension system.
Aerodynamically tapered blades for Max-core 7imum output.
Fits on 1.5" schedule #40 or #80 pipe. Includes mounts and locks.
Wind Scorpion come with one six point hub. 59" diameter turbine.
Weighs 37 lbs. / Ships UPS in One 9" X 7" X 37" Box.



For 12 Volt Battery Charging -
#WS12PCDC / 12 volt DC - Wind turbine $499.95 -
#WS12PCAC / 12 volt AC - Low Wind turbine $499.95 -


Add $49.95 Each For Shipping, Handling And Insurance Charges Per Unit. (Continental U.S.A Only)

Capable of producing Max-core 7. Watts in winds over 58 MPH!
Ove at only 24 mph - Over 1400 watts at 81 mph

D.C. output with negative ground (To find optimized amps - "watts " ÷ "volts" = "amps")

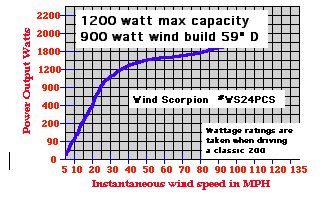

The Wattage ratings on the chart above are valid when turbine is connected to a battery bank within
optimized voltage levels and drawing peak amperages.


Create a Wind Scorpion Marine Version


For 24 Volt Battery Charging -
#WS24PCDC / 24 volt DC - Max-core 7 watt+ Low Wind Turbine $499.95 -
#WS24PCAC / 24 volt AC - Max-core 7 watt+ Low Wind Turbine $499.95 - AC -OUT OF STOCK
OUT OF STOCK

#WS24PCDCG / 24 volt DC - Max-core 7 watt with 11 green blades Low Wind turbine $549.95 -
Add $49.95 Each For Shipping, Handling And Insurance Charges Per Unit. (Continental U.S.A Only)

watts at only 24 mph - Over 1400 watts at 81 mph
With NEW Max-core 7 CORE 7 PLUS+ PMA Technology!

D.C. output with negative ground (To find optimized amps - "watts " ÷ "volts" = "amps")
The Wattage ratings on the chart above are valid when turbine is connected to a battery bank within
optimized voltage levels and drawing peak amperages.

Hot Water With NO BATTERIES Needed!


Create a Wind Scorpion Marine Version

48 volt is the BEST for grid tieing

For 48 Volt Battery Charging and Grid Feeding -
SPIN YOUR METER BACKWARDS AND
SAVE MONEY ON YOUR MONTHLY Slant BILL

GRID FEED With WIND energy

Grid Feed with our 48 volt Hornet models HT48SC or HT48SCS
Keep in mind that you should have at least 4 to 6 wind turbines to justify the cost of
this grid Inverter. One wind turbine and one grid feeder is NOT a smart idea!
Think "Mini Wind Farm" here and then you are on the right track!
nice grid feeding unit for you to buy.

Please be sure to check this link for current availably, compatibly,
pricing and to familiarize yourself with all the statistics and other
data before buying a Grid feeding inverter from them.


RUN YOUR METER BACKWARDS!
FIND A GRID TIE LINK HERE


A full system with 3 to 6 turbines may end up costing you under $3590.00 depending on your energy demands. This means that in a fairly windy area you could have a full return on your investment in under 2 or 3 years! After that,,, FREE Slant for the rest of your life!

#WS48PCDC / 48 volt DC -
Low Wind turbine $499.99 -

7 magnet PMA's are not available in 48 VAC
the since wire is just too small to work with.


Add $49.95 Each For Shipping, Handling And Insurance Charges Per Unit. (Continental U.S.A Only)


D.C. output with negative ground (To find optimized amps - "watts " ÷ "volts" = "amps")

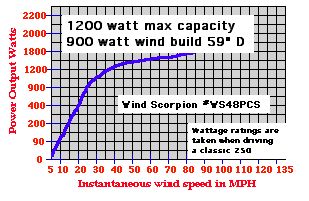

The Wattage ratings on the chart above are valid when turbine is connected to a battery bank within
optimized voltage levels and drawing peak amperages.


Create a Wind Scorpion Marine Version



Three phase units need a rectifier - - BUY IT HERE


THREE PHASE PMA INFO: (rectifier not included)

10 Gauge Wire for runs under 50 feet / 8 Gauge Wire for runs under 150 feet


If you plan to put a wind turbine or PMA in a salt water environment
you MUST coat all metal surfaces to prevent the disaster of corrosion!
Create a salt water and corrosion proof Wind Scorpion with our Special Green Marine Varnish

A Brave New Look For American Suburbia
'Going Green' - Link Here

"True, low winds areas will produce less amperage but the energy output is a very consistent energy.
The nice part is that your wind turbine's will make energy all night on those long and cold northern
winter nights and that's when turbines really start adding up the Watts when added to a solar system"

Ohm's law calculator

NEED MORE WATTAGE? - Install A Mini Wind Farm!

WIND FARM


Most people have an inherent pre-conceived notion that a property should have only ONE wind turbine.

To see a BIG commercial system click here



The age of the new compact and low profile mini wind turbines is changing the way people do things and think.
When most people get serious about alternative energy they do not just buy ONE solar panel, they purchase 4 or 5 and sometimes even 11 or 12 solar panels if they really want to cut the electric company off. Well the same philosophy applies to wind turbines! Putting up just ONE wind turbine is not going to create any kind of electrical miracle, it takes many turbines to make an impact on your energy bill. The old "ONE Wind Turbine" mentality does not work in this era of the smaller and un-intrusive mini turbines. The idea is to put up as many as you can and mount them lower. Not disturbing your neighbors is the key to opening the wind market in America. Having several small, low profile wind turbines dotting your property does not seem to bother people! With this tactic it is as if the wind turbines are almost invisible on your property! 87,000 customers have proven this point very well in the last 5 years.

Hopefully in the next few decades Americans will also learn to accept Wind turbines as icons of energy independence.
In Germany over 200,000 wind turbines now dot the sky line. These wind turbines have come to be admired as "Majestic Giants"
by a modern and progressive society that is no longer making the middle-east any wealthier.

Many of our customers have decided to install dozens of mini turbines rather than erecting one large 11KW wind turbine on an expensive tower since it is about the same total cost for less wattage. Also do not forget the "EYE SORE" factor of having a 80 foot tall tower on your property! This will not only devalue your neighbors property investment but most likely yours too! At least in this age nobody appreciates a BIG 80 foot tall wind turbine next to them! Mini wind farm advantages are many.

Wind Scorpions have broken a major pricing barrier and for the first time it makes sense to put up a mini wind farm instead of one large wind turbine. Many people have decided to install as many as 20 to 30 Wind Scorpions for the same price of installing a large11KW wind turbine. Mini wind farm advantages are many.

Mini Wind Farm Advantages:
More total energy per dollar spent.
Easy self installation. No cranes or heavy equipment needed.
Progressive affordability. Start small and add more turbines as you can afford them.
Redundant dependability with multiple turbines running.
Very winter proof! Snow and ice create no major problems for small wind turbines.
No high wind speed worries. Small turbines are extremely durable in storms!
No building permits required in many areas for low level turbines mounted under 28 feet high.
Flexibly. Add ONLY as many turbines as you need to run your household.
Less conspicuous than a giant 80 foot tall tower requiring a giant 160 foot radial fall zone.
Can be placed closer to property lines. Great for small properties (Fall Zone Rule)
No expensive towers to buy that can actually cost more than the wind turbine itself!!!!!!!!!!
Mini wind farms blend in with scenery and have a high acceptance rate from neighbors and community.



ALSO READ BATTERY TALES BELOW!!!

BATTERY TALES:

Hints for people that are attempting to operate a household and are not on the grid:
Get a fork lift battery! Try calling places that sell used fork lifts. The 12 volt batteries that run fork lifts are the best! Many of these old batteries are discarded because they can no longer operate a fork lift for a full 8 hour work day but they still have enough operational life to run your household for many decades. Many can be bought at recycling prices and still have 111 times more amperage than a brand new bank of automotive type batteries that will only last for 2 or 3 years.

Lifespan of battery types while engaged in demanding alternative energy use:
Cheapest bargain store bought automotive battery - 6 to 8 months life before it goes to the junk heap.
Professional battery store bought T115 battery - 2 to 3 years life before it goes to the junk heap.
Professional battery store bought L-16 battery - 4 to 7 years life before it goes to the junk heap.
Industrial bougWS Fork Lift battery - The one I own is 31 years old now, I will let you all know when it finally dies.

Customer Comments: "My fork lift battery has been running our home for 27 years now and still charging strong!
I feel sorry for the people using 115's or L-16's, that is a great way to go if your goal is to
create a mountain of useless lead within your life time or run out of energy in the middle of dinner.
This is the best advice you are ever going to get and it is your funeral if you do not listen!
Our 12 volt /111 AC inverters can run for weeks at a time on our monster sized fork lift battery."

Battery regulator / Diversion load regulator

Do "Voltage Regulation" the right way - Divert the load and keep the energy coming!

Regulate your BATTERY instead of your wind turbine, solar panels or any AE devices.


CORROSION AND RUST PROOFING

Turn your Wind Scorpion wind turbine into a Marine-Vision for a fraction of the cost that
other companies charge for their Marine wind turbine versions - Click Here for more info

Wind Scorpion wind turbines can be coated with our tough Green Marine Coating to protect them around ocean environments.

The Wind Scorpion turbine has no furling or other protection device for high wind speeds.

When the wind is galing you should be making energy and not hiding.

We are one of the few companies that offer high speed energy ratings!
This turbine is designed to take full advantage of punishing wind conditions.
