Makes power in mild to brisk wind zones'
- Wind Slave 1400 Series / High Amperage Wind Turbine's
- Wind Slave 1400 series are designed to extract
- maximum power from very energetic wind zones.
- If you've "Got Wind" use it. Not all areas have good wind.
- WORLDS LOWEST PRICED WIND TURBINE'S PER WATT PRODUCED
- WIND SLAVE-
- Because 98% of prevailing winds come
- only from one direction for many people
- and in many parts of the world.
- For seasonal wind changes your 4x4 mounting post
- can be easily remounted facing in any wind direction.
- Does not include any mounting hardware!
- With Split-Core PMA Technology!
- NO-COGGING Slant-Core PMA's have
- amazing power and GREAT low speed start up!

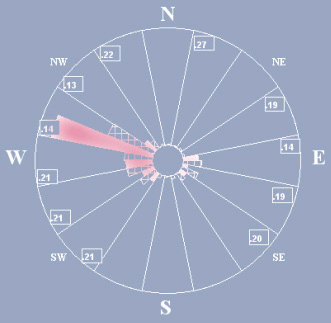

- A WIND-ROSE MAP SHOWS THAT MANY AREAS
- HAVE EXTREMELY MONO-DIRECTIONAL WINDS
- SO WHY NOT HAVE A WIND TURBINE THAT
- ONLY AIMS IN THE DIRECTION OF THE WIND?

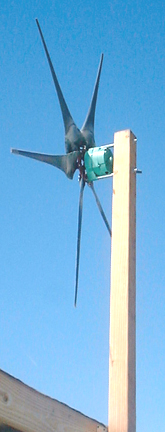

- MOUNTS TO ANY 4" X 4" WOODEN POST.
- Does not include any mounting hardware!
- WORLDS LOWEST PRICED WIND TURBINE PER WATT PRODUCED
- Cheap power for boats, RVs and battery
- charging for home power systems.
- Wind Slaves offer the most wind power for the least money!
- Rain, ice and storm proof electronics.
- PMA has no brushes, very dependable!
- True PMA for efficient power generation.
- Comes with 6 carbon fiber composite blades.
- No slip rings to fail or replace. Wire tension system.
- Aerodynamically tapered blades for maximum output.
- Fits on 1.5" schedule #40 or #80 pipe. Includes mounts and locks.
- 125,000 hours+ of rated bearing life. New bearings cost only $2.00
- Wind Slave 1400 comes with one 6 point hub. 59" diameter turbine.
- Weighs 18 lbs. / Ships UPS in One 9" X 7" X 37" Box.
OR link here http://www.youtube.com/watch?v=L1Z87w1DUvc
The microphone in this video was placed only about 12" away from the blades
so you can clearly "hear" the power and spin speed. At distance these blades
are surprisingly quiet and non-offensive to be around. Very neighbor friendly.
- Simple and reliable design. A very well proven design. Carbon fiber blades and true PMA for economical power.
- 59" inch blade diameter including a lifetime guaranty on the super strong carbon fiber blades! Over 67,000 units sold!
- 1400 series -
- Each 1400 series turbine is capable of producing 1400 Watts in winds over 70 MPH at maximum amp test load
- 1000 Watts maximum rated average in actual use.
- Many mountain tops canyons and passes can generate these types of wind speeds on many days of the week.
- In order to operate a grid feeder and turn your power meter backwards you will need 12 MPH winds minimum.
- WIND POWER! Because The Sun Doesn't Shine At Night.
- Solar works 8 hours a day and wind works 24 hours a day!
- Models Available:
- All PMA's come as DC two wire by default. If you instead want an AC 3 phase
- three wire version contact us immediately after ordering by Emailing us a note.
- DC models come as "DC" so they are fully rectified.
- AC models come as AC only and are not rectified since many people use them on three phase grid ties.
- D.C. 2 wire is the default and A.C. 3 phase is availible LINK HERE FOR MORE INFO
- For 12 Volt Battery Charging -
- #WS12 / 12 volt - 1400 watt+ Wind turbine $569.95 -
- Add $34.95 Each For Shipping, Handling And Insurance Charges Per Unit. (Continental U.S.A Only)
- Blade start up speed is only 6.3 MPH - Power up speed is 12 MPH -
- D.C. output with negative ground (To find amps - "watts " ÷ "volts" = "amps")

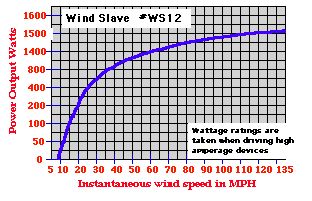

- The Wattage ratings on the chart above are valid when turbine is connected to a battery bank within
- optimized voltages and drawing peak amperages. Connecting this turbine to lower voltage battery
- banks to achieve better low wind speed charging may diminish total power output during high wind speed events.
- Designed for 12 volt battery charging only!
- For 24 Volt Battery Charging -
- #WS24/ 24 volt - 1400 watt+ Wind turbine $569.95 -
- Add $34.95 Each For Shipping, Handling And Insurance Charges Per Unit. (Continental U.S.A Only)
- Blade start up speed is only 6.3 MPH - Power up speed is 12 MPH -
- D.C. output with negative ground (To find amps - "watts " ÷ "volts" = "amps")

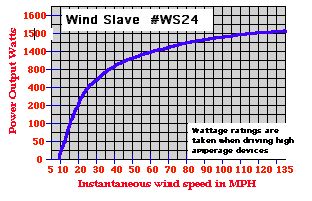

- The Wattage ratings on the chart above are valid when turbine is connected to a battery bank within
- optimized voltages and drawing peak amperages. Connecting this turbine to lower voltage battery
- banks to achieve better low wind speed charging may diminish total power output during high wind speed events.
- Designed for 24 volt battery charging only!
- For 48 Volt Battery Charging -
- #WS48 / 48 volt - 1400 watt+ Wind turbine $569.95 -
- Add $34.95 Each For Shipping, Handling And Insurance Charges Per Unit. (Continental U.S.A Only)
- Blade start up speed is only 6.3 MPH - Power up speed is 12 MPH -
- D.C. output with negative ground (To find amps - "watts " ÷ "volts" = "amps")
- The Wattage ratings on the chart above are valid when turbine is connected to a battery bank within
- optimized voltages and drawing peak amperages. Connecting this turbine to lower voltage battery
- banks to achieve better low wind speed charging may diminish total power output during high wind speed events.
- Designed for 48 volt battery charging only!
SUPER LOW WIND 10 BLADE UP-GRADE OPTION FOR
6 BLADE SYSTEMS
- #10BBDH4 - $89.95 -
- Add $19.95 Each For Shipping, Handling And Insurance Charges Per Unit. (Continental U.S.A Only)
- This option upgrades your 6 blade hub and
- blades to a 10 bladed system that makes more power
- in low wind zones and give you more amperage in high
- wind zones. Highly recommended up grade for all turbines in zones without steady winds!
- This UPGRADE MUST be ORDERED at the TIME of PURCHASE!!
- We offer the longest extended warranty in the industry - 10 years!
- You can buy an extended contract for a full 10 years!!!!!!!!
- Standard warranty is 90 days for all wind turbines on this site.
- Buy a full 10 year extended warranty - click here for more info!
- If you plan to put a wind turbine or PMA in a salt water environment
- you MUST coat all metal surfaces to prevent the disaster of corrosion!
- Create a salt water and corrosion proof Wind Slave with our Special Green Marine Varnish
- Ohms law calculator
- NEED MORE POWER? - Install A Mini Wind Farm!
- Most people have an inherent pre-conceived notion that a property should have only ONE wind turbine.
- It puzzles us to see people putting in 10 solar panels and ONLY one wind turbine and then wondering why the wind turbine puts out less power than their 10 solar panels. If you put in 10 Wind Slave wind generators and ONLY one solar panel then you would be wondering why the solar panel puts out less power.
- We need to re-educate the public into realizing that having multiple wind turbines are not only a practical solution but an absolute necessity for creating low cost electrical energy. The inherent misconception of having only ONE wind turbine per property is a myth that has to be actively talked about and challenged.
- Wind Slaves have broken a major pricing barrier and for the first time it makes sense to put up a mini wind farm instead of one large wind turbine. Many people have decided to install as many as 20 to 30 Wind Slaves for the same price of installing a large10KW wind turbine. Mini wind farm advantages are many.
- Mini Wind Farm Advantages:
- More total power per dollar spent.
- Easy self installation. No cranes or heavy equipment needed.
- Progressive affordability. Start small and add more turbines as you can afford them.
- Redundant dependability with multiple turbines running.
- Very winter proof! Snow and ice create no major problems for small wind turbines.
- No high wind speed worries. Small turbines are extremely durable in storms!
- No building permits required in many areas for low level turbines mounted under 28 feet high.
- Flexibly. Add ONLY as many turbines as you need to run your household.
- Less conspicuous than a giant 80 foot tall tower requiring a giant 160 foot radial fall zone.
- Can be placed closer to property lines. Great for small properties (Fall Zone Rule)
- No expensive towers to buy that can actually cost more than the wind turbine itself!!!!!!!!!!
- Mini wind farms blend in with scenery and have a high acceptance rate from neighbors and community.
- (You need to be in an area that has good wind near ground level like high deserts, coastal or mountain tops and passes)
- There are plenty of areas with good wind near or close to ground level. There is much talk of having very tall towers in the wind turbine industry but NOT every area requires this type of strategy. At our facility for instance, it's difficult to remain standing on very windy days. If you can feel a strong breeze while walking on your property you are in a perfect spot for a low level mini wind farm. There are millions of sites all over the world that have good low level wind characteristics just perfect for mini wind farms.
- Battery regulator
- Diversion load regulator
- Do "Voltage Regulation" the right way -
- Divert the load and keep the power coming!
- Regulate your BATTERY instead of your wind turbine, solar panels or any AE devices.
- CORROSION AND RUST PROOFING
- Turn your Wind Slave wind turbine into a Marine-Vision for a fraction of the cost that
- other companies charge for their Marine wind turbine versions - Click Here for more info
- Wind Slave wind turbines can be coated with our tough Green Marine Coating to protect them around ocean environments.
The Wind Slave turbine has no furling or other protection device for high wind speeds.- When the wind is galing you should be making power and not hiding.
- We are one of the few companies that offer high speed power ratings!
- This turbine is designed to take full advantage of punishing wind conditions.
- Blades are rated to: 135 MPH / TESTED
- (Note: 99.9% of all catastrophic wind turbine failures occur when
- the tower fails and not the turbine itself. Build your towers tough!)
- Warnings;
- PMA's are very polarity sensitive. Make sure you connect positive to positive when making your final battery connection!!! If you see sparks coming from the connector at the time of electrical hook up you may have the positive lead going to negative side of the battery. This may cause fires and burn out the coils in your PMA immediately.
- Please note that these blades are very sharp and can cause severe injury if handled improperly. Treat these blades with the same respect you would have for a sharp sword.
- These blade sets can turn at well over 2000 RPM on a windy day and can cause severe bodily injury when they are spinning. Use extreme caution! Never mount or work on a wind turbine on a windy day. Never place a turbine in any area that can be accessed by inexperienced persons or children. We assume no liability for ANY injuries caused by these products.
- If you short out the PMA wires to prevent free spinning you could burn out the PMA. Never connect the positive to the negative output wires of the PMA together!!
For HOT WATER direct from Wind Power CLICK HERE No batteries needed!
See if you are in a windy area - Click here for a wind map of the U.S.A.
THE GREAT
CONE CONTROVERSY
- Do cones help? - OR
- Are they just for beautification?
- The making of conical myths.
